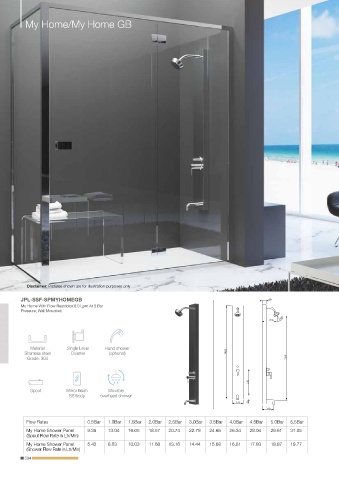

My Home/My Home GB
Disclaimer: Pictures shown are for illustration purposes only
JPL-SSF-SPMYHOMEGB 60
My Home With Flow Restrictor 8.0 Lpm At 3 Bar
Pressure, Wall Mounted
30º
220
1450
1240
415
175 50
170
Flow Rates 0.5Bar 1.0Bar 1.5Bar 2.0Bar 2.5Bar 3.0Bar 3.5Bar 4.0Bar 4.5Bar 5.0Bar 5.5Bar
My Home Shower Panel 9.35 13.04 16.05 18.57 20.74 22.79 24.65 26.34 28.04 29.61 31.05
(Spout Flow Rate in Ltr/Min)
My Home Shower Panel 5.42 8.03 10.03 11.68 13.16 14.44 15.68 16.81 17.83 18.87 19.77
(Shower Flow Rate in Ltr/Min)
