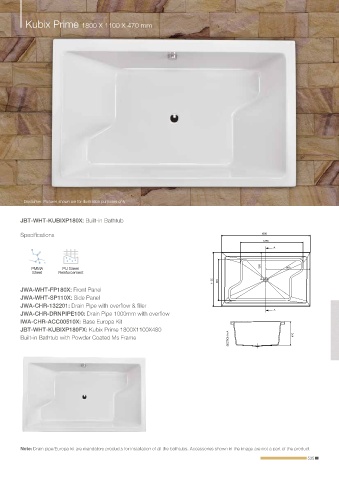

Page 537 - Jaquar Global Catalogue 2021-22

Kubix Prime 1800 X 1100 X 470 mm

Disclaimer: Pictures shown are for illustration purposes only

JBT-WHT-KUBIXP180X: Built-in Bathtub

Specifications 1800
1265
A

PMMA PU Green 560 900
Sheet Reinforcement
1100 850
JWA-WHT-FP180X: Front Panel
JWA-WHT-SP110X: Side Panel
JWA-CHR-132201: Drain Pipe with overflow & filler
JWA-CHR-DRNPIPE100: Drain Pipe 1000mm with overflow A
IWA-CHR-ACC00510X: Base Europa Kit
JBT-WHT-KUBIXP180FX: Kubix Prime 1800X1100X480
SECTION A-A
Built-in Bathtub with Powder Coated Ms Frame 470

Note: Drain pipe/Europa kit are mandatory products for installation of all the bathtubs. Accessories shown in the image are not a part of the product
