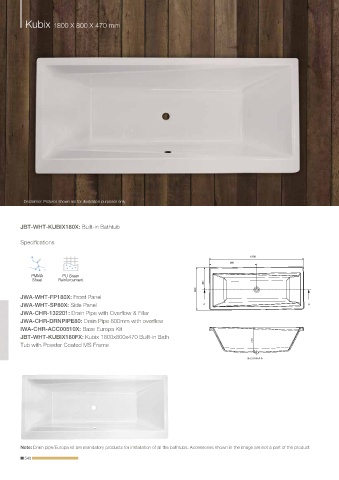

Kubix 1800 X 800 X 470 mm

Disclaimer: Pictures shown are for illustration purposes only

JBT-WHT-KUBIX180X: Built-in Bathtub

Specifications

1800
900

PMMA PU Green
Sheet Reinforcement
480
800
JWA-WHT-FP180X: Front Panel
JWA-WHT-SP80X: Side Panel A A
JWA-CHR-132201: Drain Pipe with Overflow & Filler
JWA-CHR-DRNPIPE80: Drain Pipe 800mm with overflow
IWA-CHR-ACC00510X: Base Europa Kit
JBT-WHT-KUBIX180FX: Kubix 1800x800x470 Built-in Bath
Tub with Powder Coated MS Frame 470

SECTION A-A

Note: Drain pipe/Europa kit are mandatory products for installation of all the bathtubs. Accessories shown in the image are not a part of the product
