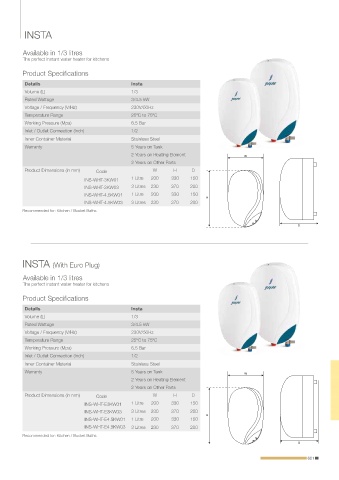

Page 603 - Jaquar Global Catalogue 2021-22

INSTA

Available in 1/3 litres
The perfect instant water heater for kitchens

Product Specifications

Details Insta
Volume (L) 1/3
Rated Wattage 3/4.5 kW
Voltage / Frequency (V/Hz) 230V/50Hz
Temperature Range 25ºC to 75ºC
Working Pressure (Mpa) 6.5 Bar
Inlet / Outlet Connection (Inch) 1/2
Inner Container Material Stainless Steel
Warranty 5 Years on Tank
2 Years on Heating Element W
2 Years on Other Parts
Product Dimensions (in mm) Code W H D
INS-WHT-3KW01 1 Litre 200 330 150
INS-WHT-3KW03 3 Litres 230 370 200
INS-WHT-4.5KW01 1 Litre 200 330 150
H
INS-WHT-4.5KW03 3 Litres 230 370 200
Recommended for: Kitchen / Bucket Baths

D

INSTA (With Euro Plug)

Available in 1/3 litres
The perfect instant water heater for kitchens
Product Specifications

Details Insta
Volume (L) 1/3
Rated Wattage 3/4.5 kW
Voltage / Frequency (V/Hz) 230V/50Hz
Temperature Range 25ºC to 75ºC
Working Pressure (Mpa) 6.5 Bar
Inlet / Outlet Connection (Inch) 1/2
Inner Container Material Stainless Steel
Warranty 5 Years on Tank W
2 Years on Heating Element
2 Years on Other Parts
Product Dimensions (in mm) Code W H D
INS-WHT-E3KW01 1 Litre 200 330 150
INS-WHT-E3KW03 3 Litres 230 370 200
H
INS-WHT-E4.5KW01 1 Litre 200 330 150
INS-WHT-E4.5KW03 3 Litres 230 370 200
Recommended for: Kitchen / Bucket Baths
D

601
