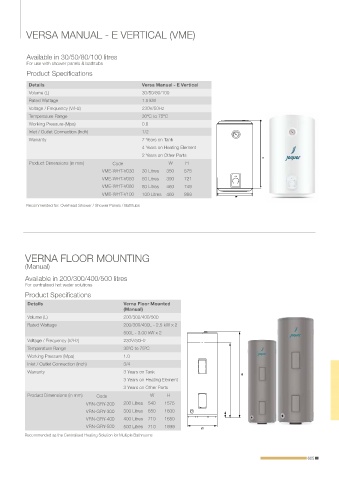

VERSA MANUAL - E VERTICAL (VME)

Available in 30/50/80/100 litres
For use with shower panels & bathtubs
Product Specifications

Details Versa Manual - E Vertical
Volume (L) 30/50/80/100
Rated Wattage 1.5 kW
Voltage / Frequency (V/Hz) 230V/50Hz
Temperature Range 30ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Warranty 7 Years on Tank
4 Years on Heating Element
2 Years on Other Parts
Product Dimensions (in mm) Code W H
VME-WHT-V030 30 Litres 350 575
VME-WHT-V050 50 Litres 390 721
VME-WHT-V080 80 Litres 460 749
VME-WHT-V100 100 Litres 460 889
Recommended for: Overhead Shower / Shower Panels / Bathtubs

VERNA FLOOR MOUNTING

(Manual)
Available in 200/300/400/500 litres
For centralised hot water solutions
Product Specifications
Details Verna Floor Mounted
(Manual)
Volume (L) 200/300/400/500
Rated Wattage 200/300/400L - 2.5 kW x 2
500L - 3.00 kW x 2
Voltage / Frequency (V/Hz) 230V/50Hz
Temperature Range 35ºC to 75ºC
Working Pressure (Mpa) 1.0
Inlet / Outlet Connection (Inch) 3/4
Warranty 3 Years on Tank
H
3 Years on Heating Element
3 Years on Other Parts
Product Dimensions (in mm) Code W H
VRN-GRY-200 200 Litres 540 1575
VRN-GRY-300 300 Litres 650 1600
VRN-GRY-400 400 Litres 710 1650
VRN-GRY-500 500 Litres 710 1999 W
Recommended as the Centralised Heating Solution for Multiple Bathrooms
