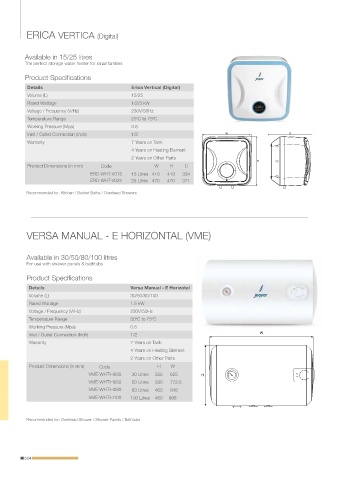

ERICA VERTICA (Digital)

Available in 15/25 litres
The perfect storage water heater for small families

Product Specifications
Details Erica Vertical (Digital)
Volume (L) 15/25
Rated Wattage 1/2/3 kW
Voltage / Frequency (V/Hz) 230V/50Hz
Temperature Range 25ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Three Phase
Warranty 7 Years on Tank
4 Years on Heating Element
2 Years on Other Parts
Product Dimensions (in mm) Code W H D
ERD-WHT-V015 15 Litres 410 410 334
ERD-WHT-V025 25 Litres 470 470 371

Recommended for: Kitchen / Bucket Baths / Overhead Showers

VERSA MANUAL - E HORIZONTAL (VME)

Available in 30/50/80/100 litres
For use with shower panels & bathtubs

Product Specifications
Details Versa Manual - E Horizotal
Volume (L) 30/50/80/100
Rated Wattage 1.5 kW
Voltage / Frequency (V/Hz) 230V/50Hz
Temperature Range 30ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2 W
Warranty 7 Years on Tank
4 Years on Heating Element
2 Years on Other Parts
Product Dimensions (in mm) Code H W
VME-WHT-H030 30 Litres 350 625 H
VME-WHT-H050 50 Litres 390 772.5
VME-WHT-H080 80 Litres 460 846
VME-WHT-H100 100 Litres 460 996

Recommended for: Overhead Shower / Shower Panels / Bathtubs
